Product Introduction

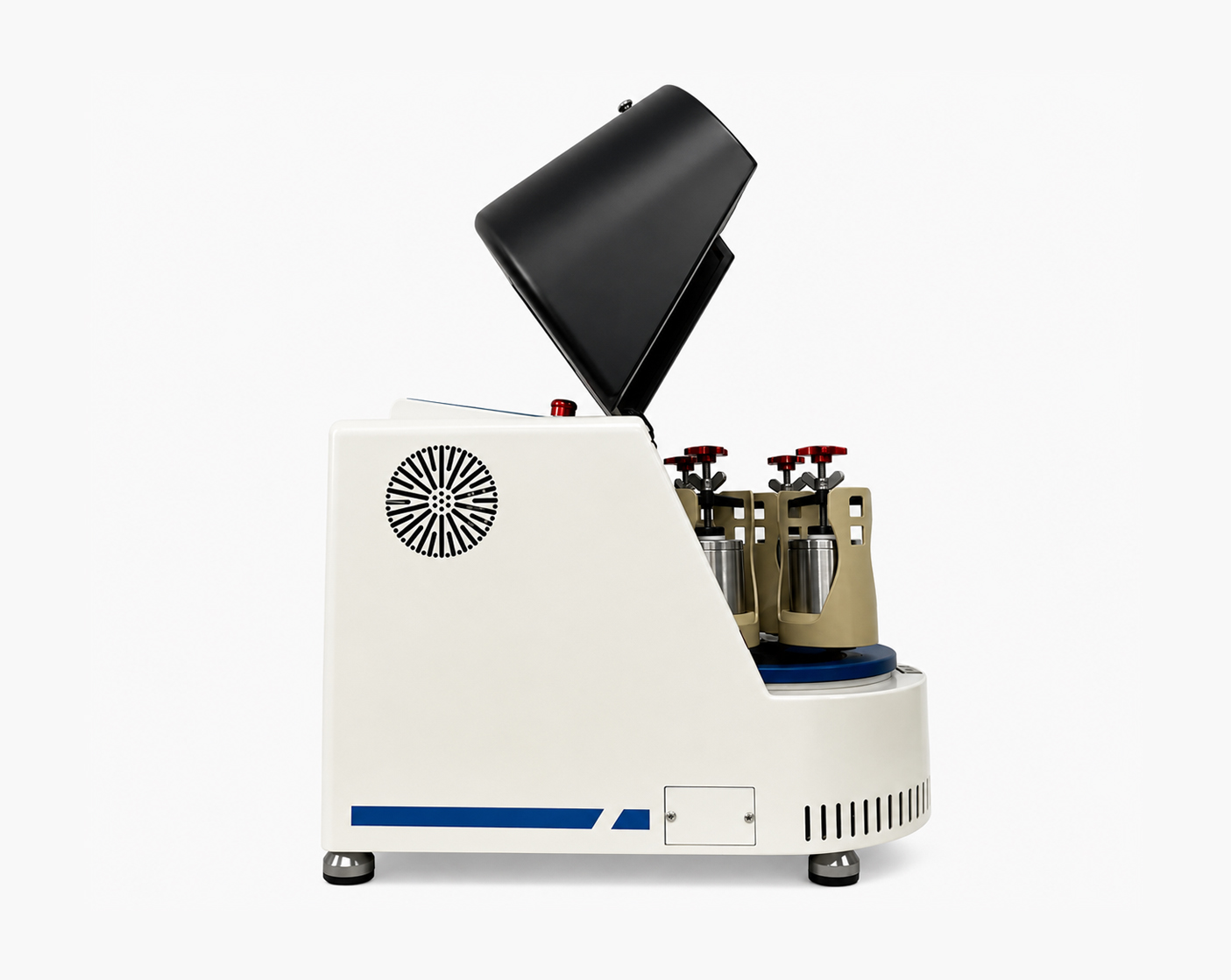

The Planetary Ball Mill MRX-XQM-1 is a compact laboratory milling system designed for fine grinding, powder preparation, material mixing, and particle-size reduction during research and development. Its four-station configuration allows multiple materials or formulations to be processed within the same experimental cycle, making it an efficient solution for laboratories working with small quantities of advanced materials.
The machine uses planetary movement in which the grinding jars rotate around their own axes while simultaneously revolving around the central axis. This combined motion generates intensive mechanical action between the grinding media and the sample, supporting efficient size reduction and homogeneous mixing of suitable materials.
The MRX-XQM-1 supports continuously adjustable speed through a variable-frequency drive, allowing researchers to establish appropriate milling conditions for different material systems. The revolution speed can be adjusted within a range of 50–400 rpm, while the jar rotation speed can reach 100–800 rpm.
A programmable control system allows users to define forward rotation, reverse rotation, pauses, and repeated operating cycles. Timing parameters from 1 to 999 minutes can be configured for different stages, making the equipment suitable for experiments that require alternating milling directions, intermittent operation, or controlled processing intervals.
The grinding chamber can accommodate four jars with capacities of 100 mL, 250 mL, or 500 mL per jar, depending on the selected configuration. Different jar and grinding media materials, including stainless steel, alumina, zirconia, agate, and PTFE, can be selected according to material compatibility and experimental requirements.
For applications requiring reduced exposure to ambient air, vacuum-compatible grinding jars can be used to conduct milling under vacuum conditions. This provides additional flexibility for researchers working with materials that require controlled processing environments.
With its compact footprint, low center of gravity, stable structure, and integrated safety protection, the MRX-XQM-1 is designed for universities, research institutes, corporate laboratories, and material development facilities that require flexible small-batch milling and mixing capabilities.
Key Specifications & Parameters
Model: MRX-XQM-1
Power Supply: Single-phase AC 220 V ±10%, 50 Hz
Rated Power: Approximately 0.75 kW
Grinding Jar Configuration: 100 mL × 4, 250 mL × 4, or 500 mL × 4
Available Jar Materials: Stainless steel, alumina, zirconia, agate, PTFE, and other compatible materials
Available Grinding Media: Stainless steel, alumina, zirconia, agate, PTFE, and other compatible materials
Maximum Filling Level: Material and grinding media should not exceed two-thirds of the jar volume
Recommended Feed Particle Size: Less than 10 mm for brittle materials; less than 3 mm for other materials
Minimum Achievable Particle Size: Up to approximately 0.1 μm, depending on material and processing conditions
Revolution Speed: 50–400 rpm
Jar Rotation Speed: 100–800 rpm
Revolution-to-Rotation Ratio: 1:2
Speed Control: Variable-frequency stepless speed adjustment
Speed Accuracy: Approximately 0.2 rpm
Programmable Timing: 1–999 minutes for forward, reverse, pause, and alternating cycles
Overall Dimensions: 450 × 700 × 550 mm
Net Weight: 41 kg
Core Features
Four-Jar Planetary Milling Configuration
The MRX-XQM-1 is equipped with four grinding positions, allowing researchers to process up to four samples during one experimental run. This configuration improves laboratory throughput when comparing different materials, formulations, or milling parameters.
Combined Revolution and Rotation Motion
The planetary movement combines jar rotation with orbital revolution. This creates intensive relative movement between the grinding media and sample, supporting efficient grinding and mixing for suitable materials.
Wide Variable-Speed Range
The variable-frequency drive provides stepless speed adjustment. Researchers can select suitable operating conditions based on material hardness, target particle size, grinding media, and experimental objectives.
Programmable Forward and Reverse Operation
The control system can automatically alternate between forward and reverse rotation with programmable timing intervals. Users can also configure pauses between cycles for applications that require intermittent milling or thermal management.
Multiple Grinding Jar Options
Grinding jars are available in stainless steel, alumina, zirconia, agate, and PTFE configurations. This selection allows researchers to choose a suitable jar material according to chemical compatibility and contamination-control requirements.
Vacuum Grinding Capability
Compatible vacuum grinding jars can be selected for experiments requiring milling under reduced-pressure conditions. This option expands the machine's suitability for materials that should be processed with limited exposure to ambient air.
Fine Particle Processing
Under suitable material and process conditions, the system can achieve particle sizes down to approximately 0.1 μm, supporting fine powder preparation and advanced materials research.
Integrated Safety Protection
The machine incorporates an interlock safety switch that prevents operation when the protective cover is open. This helps reduce operational risks during high-speed planetary milling.
Main Functions
Fine Grinding and Particle Size Reduction
The primary function of the MRX-XQM-1 is to reduce the particle size of suitable solid materials through controlled mechanical milling. Processing parameters can be adjusted to support different target particle-size requirements.
Material Mixing
The intensive movement inside the grinding jars promotes mixing between different powder components, making the equipment useful for laboratory formulation development and material blending studies.
Nanomaterial Preparation
The machine can be used for suitable nanomaterial research where fine grinding and controlled dispersion are required. Actual achievable particle size depends on the starting material, grinding media, jar configuration, and process parameters.
Small-Batch Sample Preparation
Its multi-jar laboratory configuration enables researchers to prepare several small-batch samples in parallel, supporting comparative experiments and formulation screening.
Programmable Milling Cycles
Forward rotation, reverse rotation, pauses, and repeated cycles can be programmed within the specified timing range. This allows researchers to develop customized milling sequences for different materials.
Vacuum Milling
When equipped with compatible vacuum grinding jars, the system can be used for sample preparation under vacuum conditions, providing an alternative processing environment for selected air-sensitive materials.
Specific Application Scenarios
Battery Material Research
The MRX-XQM-1 can be used in battery laboratories for preparing and mixing suitable electrode materials, active powders, conductive additives, and other research-scale material formulations before subsequent testing or processing.
Nanomaterial Development
For nanomaterial research, planetary milling provides intensive mechanical processing that can support particle-size reduction, powder dispersion, and material preparation under controlled laboratory conditions.
Ceramic Material Research
The system is suitable for laboratory processing of compatible ceramic powders, helping researchers perform fine grinding and homogenization before forming, sintering, or other material evaluation processes.
Mineral and Geological Sample Preparation
Suitable mineral and geological materials can be reduced to finer particle sizes for subsequent laboratory analysis, characterization, and experimental research.
Metallurgy and Powder Materials
The machine can support research involving suitable metallic powders and other powder-based materials where controlled milling, blending, or particle-size reduction is required.
Pharmaceutical and Chemical Research
With an appropriate jar and grinding media combination, the MRX-XQM-1 can be used for selected pharmaceutical, chemical, and functional material research involving small-batch powder processing.
University and Corporate R&D Laboratories
The compact four-jar design makes the equipment suitable for university laboratories, research institutes, corporate R&D centers, and pilot material development facilities requiring flexible laboratory-scale milling capabilities.
Frequently Asked Questions
1. What is the MRX-XQM-1 used for?
The MRX-XQM-1 is a Laboratory Planetary Ball Mill used for fine grinding, powder preparation, material mixing, particle-size reduction, and small-batch advanced material research.
2. How many grinding jars can the machine accommodate?
The machine accommodates four grinding jars simultaneously. Available configurations include 100 mL × 4, 250 mL × 4, and 500 mL × 4.
3. What materials are available for the grinding jars?
Grinding jars can be configured using stainless steel, alumina, zirconia, agate, PTFE, and other compatible materials according to the application and material requirements.
4. What is the smallest particle size the planetary ball mill can achieve?
The specified minimum output particle size can reach approximately 0.1 μm under suitable processing conditions. Actual results depend on the material properties, starting particle size, grinding media, jar material, speed, and milling duration.
5. Can the MRX-XQM-1 process Battery Materials?
Yes. The planetary ball mill can be used for suitable battery material research, including laboratory-scale powder mixing, grinding, and sample preparation for electrode material development.
6. Does the machine support forward and reverse rotation?
Yes. The programmable control system supports forward and reverse operation, including alternating cycles and pause intervals. Timing can be configured within the specified 1–999 minute range.
7. Can the planetary ball mill operate under vacuum?
Yes. Compatible vacuum grinding jars can be selected for experiments that require milling under vacuum conditions or reduced exposure to ambient air.
8. What is the maximum filling level of each grinding jar?
The combined volume of the material and grinding media should not exceed two-thirds of the grinding jar volume. The appropriate loading level should also be determined according to the material and milling requirements.
9. What is the speed range of the MRX-XQM-1?
The revolution speed can be adjusted from 50 to 400 rpm, while the grinding jar rotation speed ranges from 100 to 800 rpm. The revolution-to-rotation ratio is 1:2.
10. Is the MRX-XQM-1 suitable for laboratory research?
Yes. Its compact footprint, four-jar configuration, programmable operation, variable-speed control, and multiple jar material options make it suitable for universities, research institutes, corporate laboratories, and advanced materials R&D facilities.
