Product Introduction

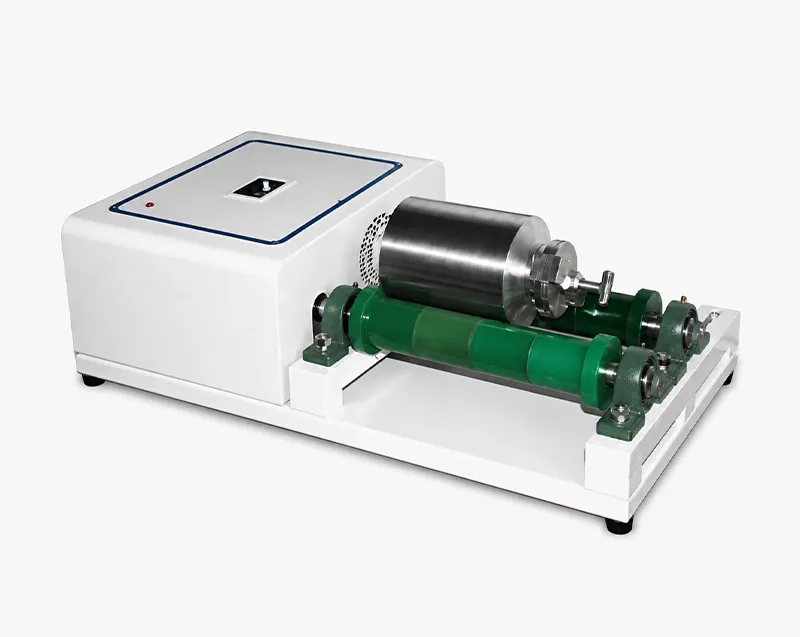

The Laboratory Roller Ball Mill MRX-QM-2 is a compact grinding and mixing machine designed for laboratory research, material development, teaching, testing, and small-batch production. Unlike large industrial grinding systems, this roller-driven laboratory mill provides a practical solution for preparing smaller quantities of materials while maintaining a controlled and repeatable grinding process. Its roller configuration allows grinding jars to rotate continuously, creating the mechanical action required for particle size reduction and material mixing.
The MRX-QM-2 is suitable for both dry grinding and wet grinding, giving laboratories greater flexibility when working with different material systems. The variable-speed drive allows the roller speed to be adjusted according to material characteristics, grinding requirements, and experimental conditions. Its compact structure also makes it suitable for laboratories where available floor space is limited.
Designed for convenient operation, the machine allows grinding jars to be replaced efficiently when different materials or processing conditions are required. With a maximum roller speed of approximately 570 rpm, an adjustable roller spacing of 140 mm, and a single-jar load capacity of up to 80 kg, the MRX-QM-2 provides a useful balance between laboratory-scale flexibility and small-batch processing capability.
Key Specifications & Parameters
Model: MRX-QM-2.
Motor: Y0.75-4B3 variable-speed motor.
Variable Frequency Drive: 0.75 kW / 220 V.
Main Roller Speed: 60–570 rpm ±10 rpm.
Effective Roller Length: 340 mm.
Adjustable Roller Spacing: 140 mm.
Maximum Load per Jar: 80 kg.
Machine Dimensions: Approximately 845 × 435 × 270 mm.
Machine Weight: Approximately 43 kg.
Core Features
The MRX-QM-2 uses a roller-based grinding mechanism to provide stable mechanical motion for laboratory-scale material processing. The adjustable operating speed makes it possible to optimize the grinding conditions for different materials rather than relying on a fixed-speed process.
Its compact construction is particularly suitable for research laboratories, pilot preparation areas, university laboratories, and other environments where equipment footprint is an important consideration. The machine is designed for straightforward operation, allowing researchers to concentrate on process development rather than complicated equipment setup.
The roller spacing can be adjusted according to the selected grinding jar and operating requirements. This provides greater flexibility when different jar sizes or configurations are used during material experiments.
The grinding system supports both dry and wet processing. This feature enables laboratories to select a suitable preparation method according to the physical properties of the material and the intended downstream application.
The machine body adopts a compact geometric design that provides a clean and professional appearance while making the equipment practical for laboratory environments. Its construction is intended to provide stable operation during extended grinding and mixing processes.
Main Functions
The primary function of the MRX-QM-2 is laboratory-scale fine grinding. Materials can be processed in suitable grinding jars to achieve the required degree of particle size reduction for subsequent testing, formulation, characterization, or production trials.
The machine can also be used for material mixing. During roller rotation, the contents of the grinding jar are continuously moved, helping distribute different components throughout the batch. This makes the equipment useful for experimental formulations where grinding and mixing need to be performed within the same processing stage.
Another important function is small-batch material preparation. Researchers can use the equipment to evaluate grinding conditions, compare material formulations, and prepare samples before scaling a process to larger equipment.
The adjustable speed function also supports process optimization. Different materials can require different mechanical conditions, and variable-speed operation gives researchers greater control when establishing suitable experimental parameters.
Specific Application Scenarios
In battery and energy-material research, the MRX-QM-2 can be used for laboratory preparation and mixing of selected powder materials where controlled particle processing is required. It can support material development before subsequent electrode preparation, formulation, or characterization.
For ceramic research, the machine can assist with the preparation and homogenization of ceramic powders and experimental formulations. Its dry and wet grinding capability provides flexibility for different ceramic processing routes.
In chemical and materials laboratories, the roller ball mill can be used for experimental grinding, dispersion, and mixing of suitable materials. Researchers can adjust the operating speed to investigate the relationship between processing conditions and final material characteristics.
Universities and research institutions can use the MRX-QM-2 for laboratory demonstrations, material science experiments, sample preparation, and process-development studies. Its compact structure makes it practical for teaching laboratories and research spaces with limited equipment capacity.
For small-batch manufacturing and pilot preparation, the equipment can be used to evaluate grinding and mixing parameters before a larger production system is selected. This makes it useful as an intermediate processing tool between laboratory experiments and scale-up activities.
FAQ
1. What is the Laboratory Roller Ball Mill MRX-QM-2 used for?
The MRX-QM-2 is designed for laboratory grinding, mixing, material preparation, research, testing, teaching, and small-batch processing. It can be used with suitable materials across battery, ceramic, chemical, materials science, and other research applications.
2. Can the MRX-QM-2 perform both dry and wet grinding?
Yes. The machine supports both dry and wet grinding processes, allowing users to select an appropriate processing method according to the material and experimental requirements.
3. Is the roller speed adjustable?
Yes. The machine uses a variable-frequency drive, and the main roller speed can be adjusted within approximately 60–570 rpm. This allows users to optimize operating conditions for different materials.
4. What is the maximum load capacity of the MRX-QM-2?
The specified maximum load is up to 80 kg per grinding jar. Actual operating capacity should be determined according to the selected jar, material characteristics, grinding media, and process requirements.
5. Can the grinding jars be changed?
Yes. The machine is designed to facilitate convenient jar replacement, making it suitable for laboratories that need to process different materials or perform multiple experimental procedures.
6. Is the MRX-QM-2 suitable for laboratory research?
Yes. Its compact footprint, adjustable speed, flexible processing capability, and straightforward operation make it suitable for research laboratories, universities, testing facilities, and material development environments.
7. Can it be used for small-batch production?
Yes. The MRX-QM-2 is suitable for certain small-batch grinding and mixing applications. The appropriate batch size and grinding configuration should be evaluated according to the specific material and production requirements.
8. What is the effective roller length?
The effective roller length is approximately 340 mm, with an adjustable roller spacing of approximately 140 mm.
9. What is the power requirement?
The MRX-QM-2 uses a 0.75 kW motor and a 0.75 kW / 220 V variable-frequency drive. The power supply should be confirmed according to the final equipment configuration.
