Product Introduction

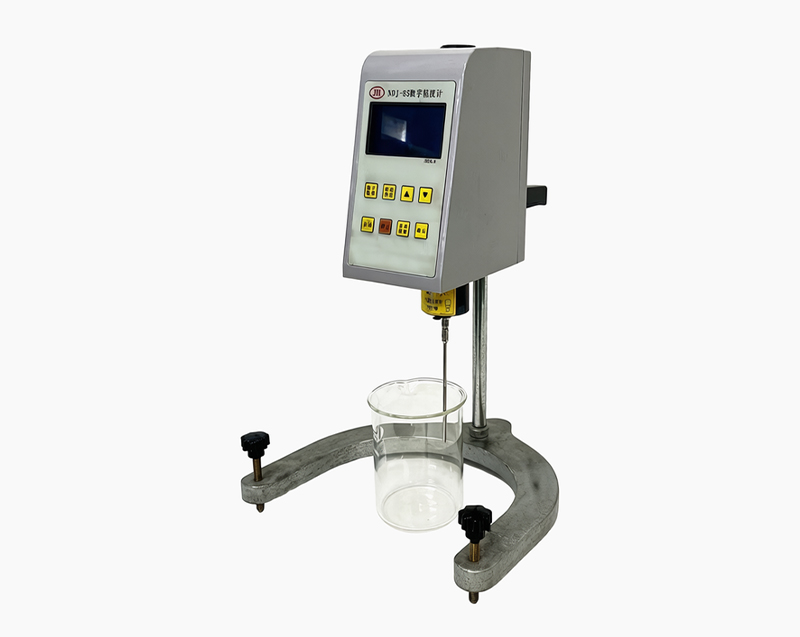

The Digital Rotational Viscometer – MRX-NDJ5S is a laboratory viscosity measurement instrument developed for quantitative evaluation of liquid flow resistance and absolute viscosity. It is designed for applications where reliable viscosity data is important for material formulation, quality control, and process development. The instrument covers a broad measurement range from 1 to 100,000 mPa·s (cP), allowing it to handle a wide variety of low- to high-viscosity materials.
Based on a microprocessor-controlled measurement system and gearless rotational drive structure, the MRX-NDJ5S provides stable spindle rotation and precise viscosity measurement. Its digital display presents the measured viscosity together with temperature, rotational speed, torque percentage, spindle number, and the maximum measurable viscosity associated with the selected spindle and speed. This gives operators direct access to the key parameters required during laboratory testing.
An RTD temperature probe continuously monitors the sample temperature during measurement, helping users evaluate viscosity under controlled thermal conditions. The instrument also incorporates an RS232C standard output interface for data communication with compatible external systems, making it suitable for laboratories that require digital measurement records or instrument integration.
The four standard spindle speeds of 6, 12, 30, and 60 rpm provide flexibility for different sample characteristics and test conditions. Four standard spindles are included, while an optional No. 0 spindle can be selected when required. With its combination of broad measurement capability, straightforward operation, stable display, and temperature monitoring, the MRX-NDJ5S is suitable for battery slurry research as well as testing of coatings, paints, adhesives, oils, food products, pharmaceutical fluids, cosmetics, and other viscous materials.
Key Specifications & Parameters
Product Model: MRX-NDJ5S
Instrument Type: Digital rotational viscometer
Measurement Range: 1–100,000 mPa·s (cP)
Rotational Speeds: 6, 12, 30, and 60 rpm
Standard Spindles: No. 1, No. 2, No. 3, and No. 4 spindles
Optional Spindle: No. 0 spindle
Measurement Accuracy: ±1.0%
Repeatability: ±0.50%
Display Information: Viscosity value, temperature, torque, rotational speed, and spindle number
Temperature Measurement: RTD temperature probe
Data Interface: RS232C standard output interface
Power Supply: AC 220V, 50 ±1Hz input through power adapter; 15V, 1.2A output
Dimensions: 280 × 105 × 258 mm, excluding support bracket
Equipment Weight: Approximately 5 kg
Core Features
Wide Viscosity Measurement Range: The MRX-NDJ5S covers viscosity values from 1 to 100,000 mPa·s (cP), providing a versatile measurement range for laboratory fluids with significantly different viscosity characteristics.
Microprocessor-Based Control: A 16-bit microprocessor control core manages the measurement process and supports stable instrument operation during viscosity testing.
Gearless Rotational Structure: The measurement system uses a gearless drive arrangement to provide consistent spindle rotation and support stable viscosity readings.
Real-Time Temperature Monitoring: The included RTD temperature probe measures sample temperature during testing, allowing viscosity results to be evaluated together with the corresponding thermal condition.
Clear Digital Readout: The LCD display provides direct access to viscosity, speed, torque percentage, spindle number, and the maximum viscosity measurable under the selected operating condition.
Multiple Test Speeds: Four selectable rotational speeds of 6, 12, 30, and 60 rpm give operators greater flexibility when establishing suitable measurement conditions for different materials.
Standard Multi-Spindle Configuration: Four spindles are supplied as standard, allowing users to select the appropriate measurement setup according to sample viscosity and testing requirements.
RS232C Communication: The standard RS232C interface supports connection with compatible external equipment for digital data communication and laboratory measurement management.
Main Functions
Absolute Viscosity Measurement: The instrument measures the viscosity of liquid materials and provides a direct digital reading for laboratory analysis and quality evaluation.
Battery Slurry Testing: The MRX-NDJ5S can be used to evaluate the viscosity characteristics of battery electrode slurries during formulation development and coating process preparation.
Temperature-Related Viscosity Evaluation: With the RTD probe, users can monitor sample temperature while measuring viscosity, providing additional information for experiments where viscosity changes with temperature are important.
Material Formulation Comparison: Researchers can use viscosity measurements to compare different formulations, material ratios, or processing conditions during product and process development.
Laboratory Quality Control: The stable digital display and defined measurement accuracy make the instrument suitable for routine viscosity checks of incoming materials, prepared formulations, and finished fluid products.
Multi-Material Fluid Testing: The broad measurement range enables testing across different types of viscous fluids rather than limiting the instrument to a single material category.
Specific Application Scenarios
Lithium Battery Slurry Development: In battery R&D laboratories, the MRX-NDJ5S can be used to characterize cathode and anode slurry viscosity before coating, helping researchers monitor formulation changes and establish suitable processing conditions.
Electrode Coating Process Research: Slurry viscosity is an important material parameter during coating development. The viscometer can provide quantitative viscosity data for comparing slurry batches and investigating coating-related process behavior.
Battery Material Formulation Screening: When researchers evaluate different binder systems, solvent ratios, conductive additives, or active material formulations, viscosity measurement can be used as one of the key indicators for comparing material processability.
Paint and Coating Laboratories: The instrument can be applied to viscosity testing of paints and coatings where consistent fluid characteristics are required for formulation development and quality control.
Adhesive and Glue Testing: Adhesive manufacturers and research laboratories can use the MRX-NDJ5S to determine viscosity characteristics during formulation development and routine material evaluation.
Oil and Lubricating Fluid Analysis: The measurement range allows suitable oil-based materials and other viscous fluids to be evaluated under defined rotational test conditions.
Food and Cosmetic Formulation: Research and quality-control laboratories can use the instrument for viscosity evaluation of selected food, cosmetic, and pharmaceutical fluid formulations.
University and Industrial Research: Its digital measurement system, temperature monitoring, multiple speeds, and RS232C interface make the MRX-NDJ5S suitable for material science laboratories, chemical research centers, and industrial R&D facilities.
FAQ
1. What is the MRX-NDJ5S used for?
The MRX-NDJ5S is a digital rotational viscometer used to measure the viscosity of liquid and semi-fluid materials. It can be applied to battery slurry, coatings, paints, adhesives, oils, food products, pharmaceutical fluids, cosmetics, and other suitable materials.
2. What is the viscosity measurement range?
The measurement range is 1–100,000 mPa·s (cP). The applicable measurement range for an individual test depends on the selected spindle and rotational speed.
3. How many rotational speeds are available?
The instrument provides four selectable speeds: 6, 12, 30, and 60 rpm. These settings allow users to establish different test conditions according to sample characteristics and measurement requirements.
4. How many spindles are included?
Four standard spindles, numbered 1 through 4, are supplied with the instrument. A No. 0 spindle is available as an optional accessory when required for specific testing conditions.
5. Can the MRX-NDJ5S measure battery electrode slurry?
Yes. The instrument can be used for laboratory viscosity evaluation of battery electrode slurry. It is particularly useful for comparing slurry formulations and monitoring viscosity before the electrode coating stage.
6. Does the instrument measure temperature during viscosity testing?
Yes. The MRX-NDJ5S is equipped with an RTD temperature probe that provides temperature monitoring during the viscosity measurement process.
7. What information is shown on the digital display?
The display can show the measured viscosity value, sample temperature, torque, rotational speed, and spindle number. It also provides the maximum measurable viscosity associated with the selected spindle and speed.
8. What is the measurement accuracy of the MRX-NDJ5S?
The specified measurement accuracy is ±1.0%, while the repeatability specification is ±0.50%.
9. Does the viscometer support external data communication?
Yes. The MRX-NDJ5S includes an RS232C standard output interface for communication with compatible external devices and laboratory data systems.
10. Is the MRX-NDJ5S suitable for high-viscosity materials?
Yes. With a maximum specified measurement range of 100,000 mPa·s (cP), the instrument can be used for a wide range of low- and high-viscosity laboratory materials when the appropriate spindle and rotational speed are selected.
